DIGITAL WEIGHT TRANSMITTER MICROCONTROLLER FOR INDUSTRIAL DOSAGE SYSTEMSDGT60: WEIGHT INDICATOR-UNIVERSAL REPEATER

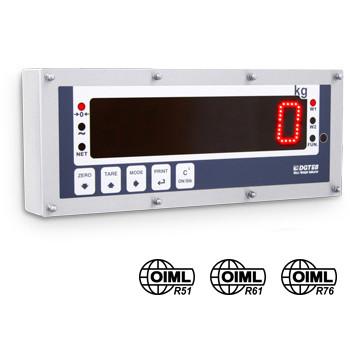

Weight indicator/ repeater with large matrix display composed of very intense bright LEDs. Particularly suitable for use outdoors, also in full sunlight, and where it's necessary to view from a distance at any angle. Case completely in IP68 stainless steel. CE-M approvable (OIML R-76 / EN 45501).
MAIN FEATURES
Functional 5-key waterproof keypad.
Large 6-digit display, 60 mm high, with very efficient SMD LEDs (software adjustment of the brightness intensity), complete of 6 Leds for indication of active functions, visible from over 25 m, with viewing angle up to 120° and with power up to 750 mcd.
IP68 stainless steel case complete of wall fixing bracket.

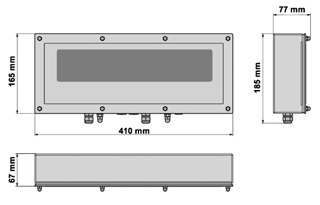

Dimensions: 410 x 67 x 165 mm.
Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS.
Max. 10.000e or multirange 2 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.
Max. 1.000.000 displayable divisions viewable with internal resolution up to 3.000.000 points.
Up to 8 signal linearisation points with DINITOOLS.
A/D 24 bit sigma-delta 4-channel conversion, max.200 conv./sec. with automatic selection.
Connectable with up to 8 analogue load cells with 350 Ohm input resistance.
Management of a weighing system with up to 4 cells with digital equalisation or management of up to 4 independent weighing systems.
Power supply from 12 to 24 Vdc with 110-240 Vac internal power supplier.
Available as Scale or as Repeater version.
Fitted with an air valve for regulating the humidity and the pressure inside the indicator.
MAIN CERTIFICATIONS
EU Type Examination Certificate (45501:2015)
OIML R76
OIML R61 - MID
OIML R51
I/O SECTION
RS232/C bidirectional port configurable for connection to printer, PC, or other external units.
RS485 bidirectional port configurable for connection to PC, PLC, or other external units.
PROFIBUS serial interface (DGT60PB model).
2 photomosfet outputs: 150 mA 48 Vac / 150 mA 60 Vdc (NO), with configurable functions.
2 optoisolator photocouplers: 12÷24 Vdc, 5 mA min - 20 mA max, with configurable functions.
16-bit analogue output (DGT60AN model) 4-20mA / 0-5Vdc / 0-10Vdc at choice; maximum applicable voltage: 350 Ohm; minimum applicable voltage resistance: 10 kohm.
DGT60R REPEATER FUNCTIONS
Version with specific program for use of the indicator as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/MCW.
FUNCTIONING MODES:
- Multi-scale repeater (MASTER):
function which allows to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying and printing the sum of the weighs of all the scales.
- UNIVERSAL weight repeater:
function which allows to repeat the weight of any scales, through the configuration of the input string.
DGT60BC / DGT60AN / DGT60PB FUNCTIONS
THROUGH KEYBOARD:
Zeroing; Semi automatic and presettable tare, print and/or data transmission; ON/Stand-by.
SELECTABLE:
High Resolution Weighing x 10; Net/Gross or lb/kg conversion; Weighs totalisation; Formulation; Approved transmission of the weight to PC/PLC (with ALMEM Alibi memory option); Counting; In/Out Truck weighing; Hold e Peak.
EXTERNAL INPUT:
Simulation of key pressure; Keyboard lock.
MOSFET OUTPUT:
Set Point Control on the weight, either positive (in loading) or negative (in unloading), or on the pieces (counting mode), with programmable enabling/disabling thresholds, as direct check or upon weight stability.
SERIAL PORTS:
On all models: Reading of the net, gross, and tare weights; Clearing; Semi automatic and presettable tare; Scale switch; Setting of outputs activation thresholds; Reading/Writing of Alibi Memory.
DGT60BC and DGT60AN models: Reading of microvolts or ADC converter for all the channels; Message display; Printing; Setting of APW in counting mode; Simulation of key pressure; MODBUS serial protocol.
THROUGH 16 bit ANALOGUE OUTPUT (DGT60AN):
Analogue output proportional to the net or gross weight, either positive (in loading) or negative (in unloading).
Weight Indicators Controller Available versions
| | Code | Description |
 | DGT60BC-1 | Weight indicator with 60mm LED display. IP68 stainless steel case, 5-key keypad, and air valve for regulating the humidity and the pressure. |
| DGT60R-1 | Weight repeater with 60 mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure, and configurable protocol. |
| DGT60AN-1 | Weight indicator with 60mm LED display and analogue output. IP68 stainless steel case, 5-key keypad, and air valve for regulating the humidity and the pressure. |
| DGT60PB-1 | Weight indicator with 60mm LED display and Profibus. IP68 stainless steel case, 5-key keypad, and air valve for regulating the humidity and the pressure. |
